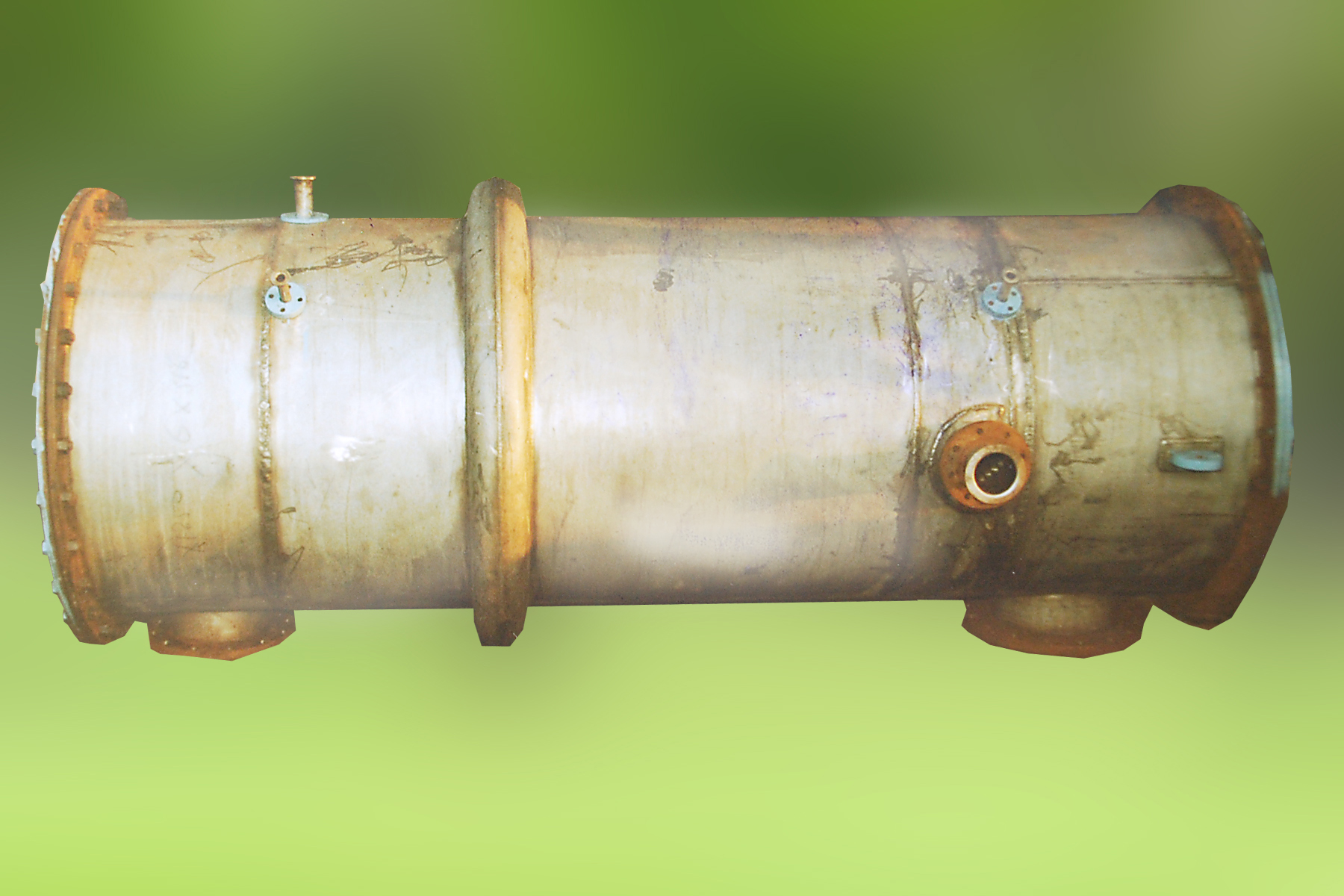

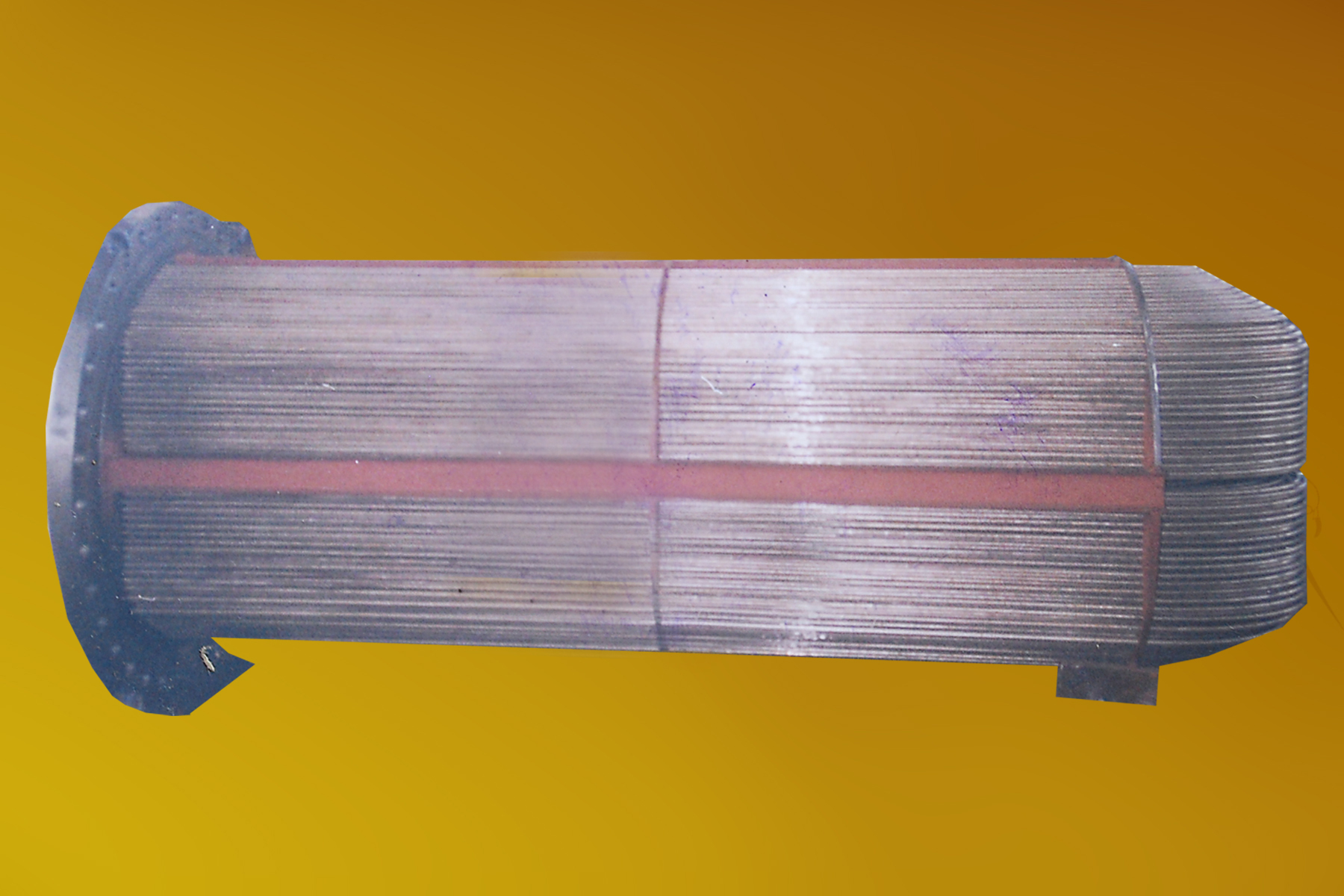

A. LP HEATER

Cooler Construction	Floating tube plate,
Tubes Execution	Single U bend tube
Tubes	Copper, Copper-Nickel (70:30), Copper-Nickel (90:10), Admiralty Brass
Tube Plates	C-Steel

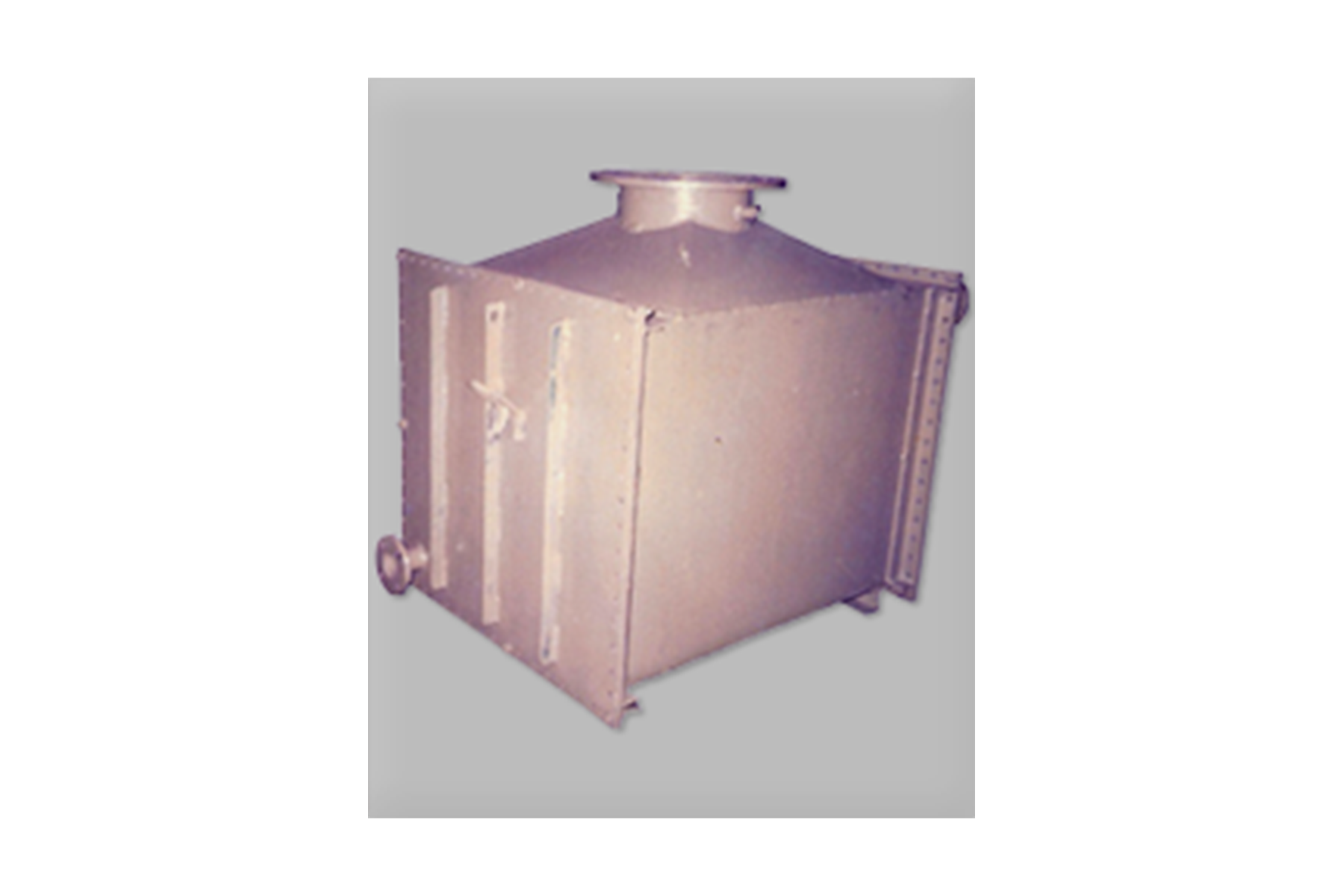

B.TRANSIENT HEATER

Designed & Manufactured for specific requirement and atomization of Transient Heater.

Compact size No pump required as massecuiteis heated by low Temperature Vapors

Power Saving and totally Maintenance Free.

C.SUPERHEATED WASH WATER SYSTEM

Vertical Heat Exchanger column with S.S. tubes.

Digital Temperature.

Highly reliable‚ robust and maintenance free.

Assured high rangability and turn down

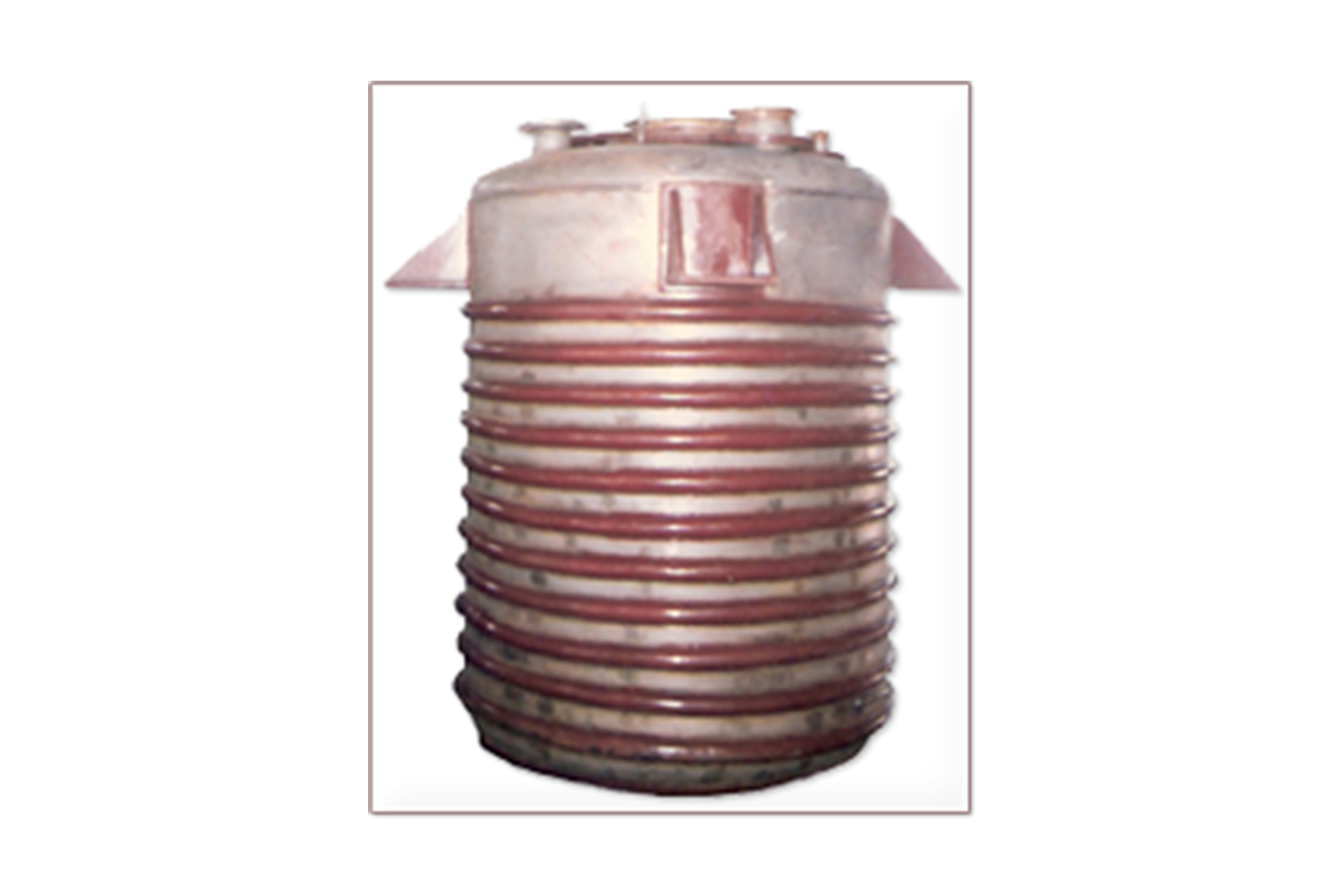

D.CHEMICAL EQUIPMENTS

Distillation Vessels, Limped type.

Material S.S./ M.S. / Aluminum etc.

As per customer requirements

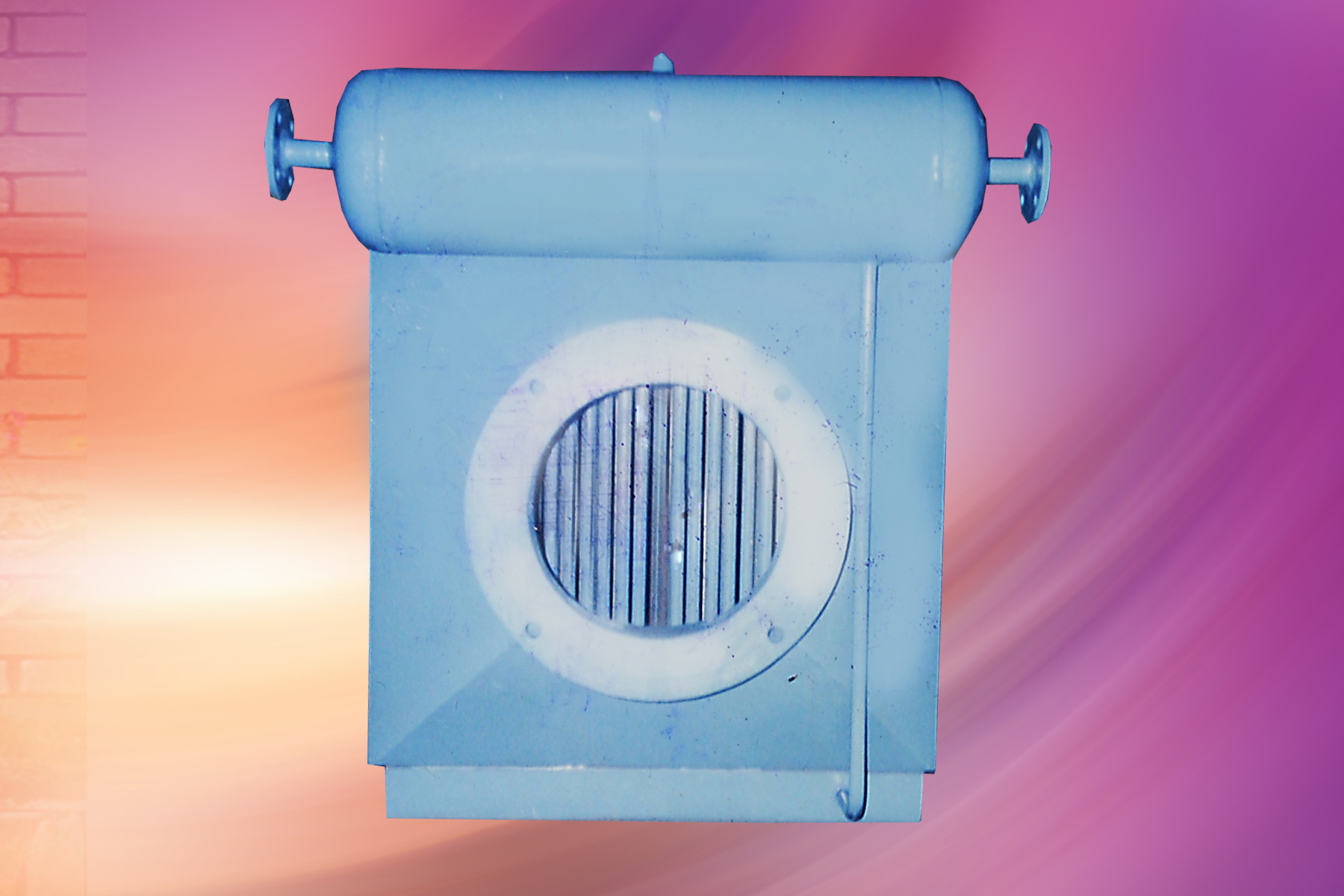

E.SUGAR DRYER HOT AIR BLOWER

Sugar Dryer (H.A.B) Hot Air Centrifugal Blower Heat Exchanger

Cap – 12500 m3/hr., ST. Pre 110mm WG,BHP – 8.37,Fan Dia – 27 inch.

Face Area 3’ x 4’, No of rows – 2,Pipe Size 3/4" (or as per requirement).

Inlet steam pressure – 30 to 40 PSIG.

Capacity & General Specifications

Total Heat Transfer 65000 Kcal/Hr. (240 KW).

Suitable for 2000 TCD Plant (8 Tones/Hr) or as per requirements.

Incoming Hot water Temperatures -650C to 700C.

We design as per the availability of space between your continuous Crystallizer and continuous Centrifugal Machine.

Incoming Hot water Temperatures -650C to 700C.

Also if required we provide Automatic Controlling System for Transient Heaters..
